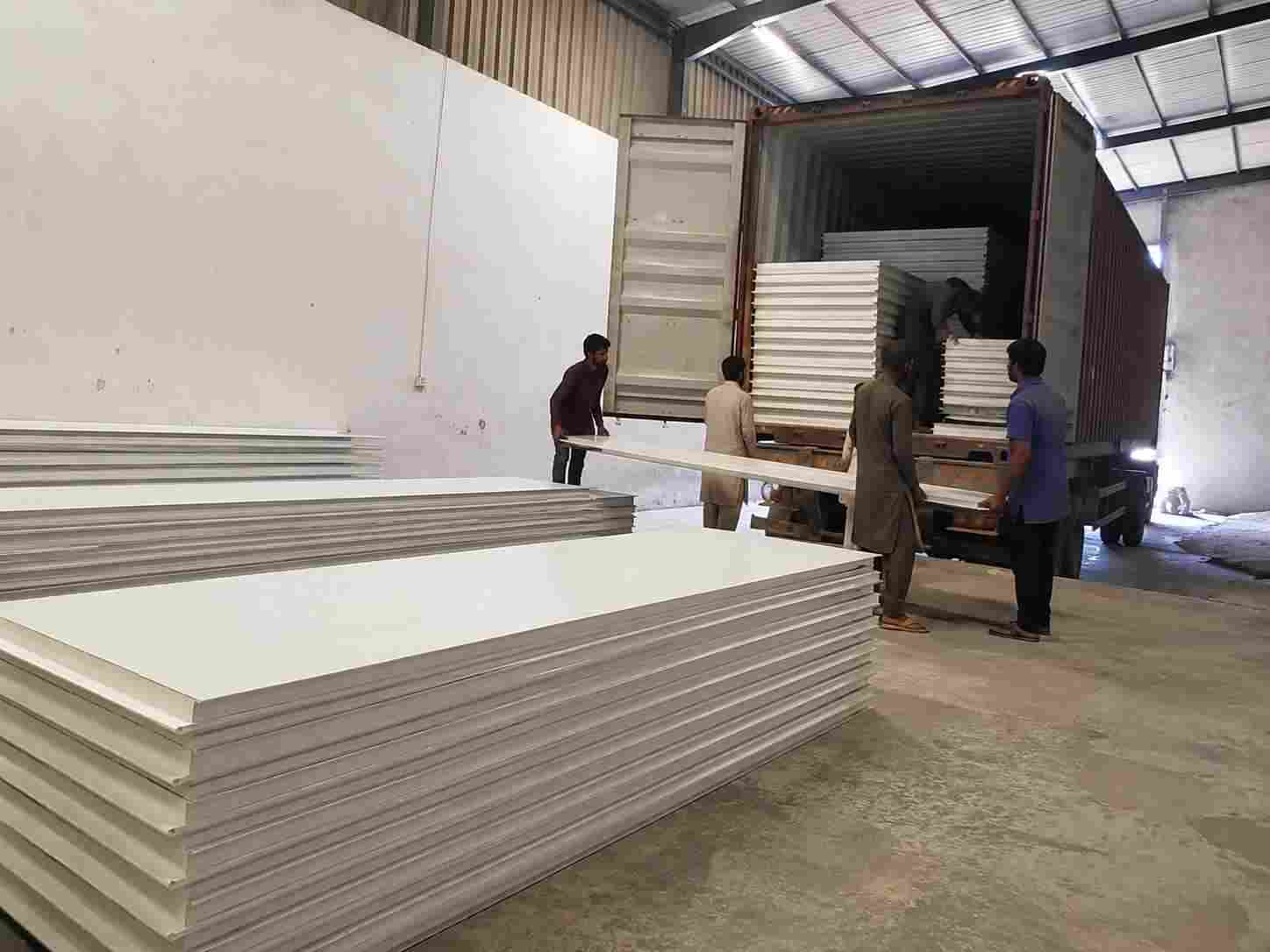

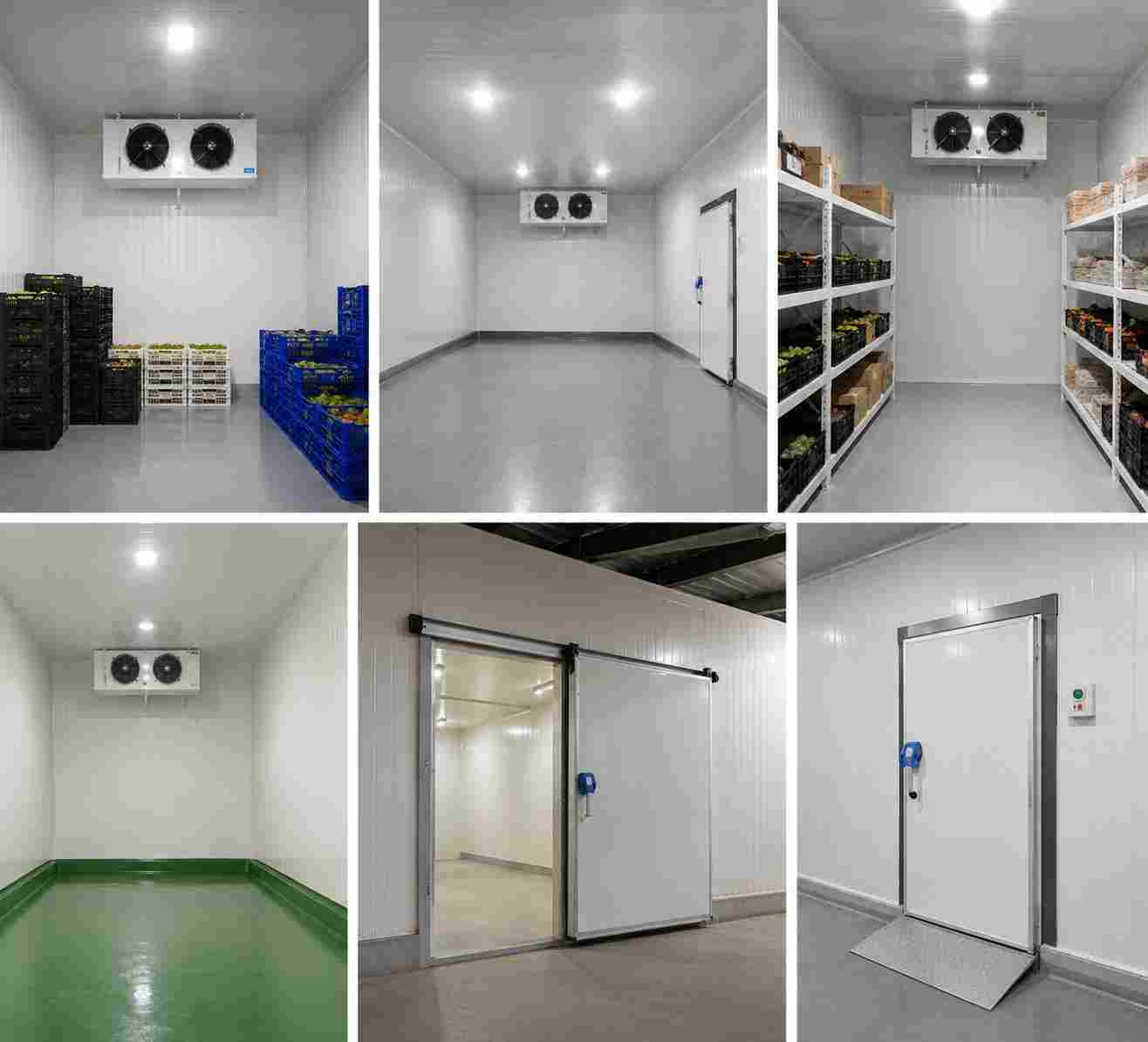

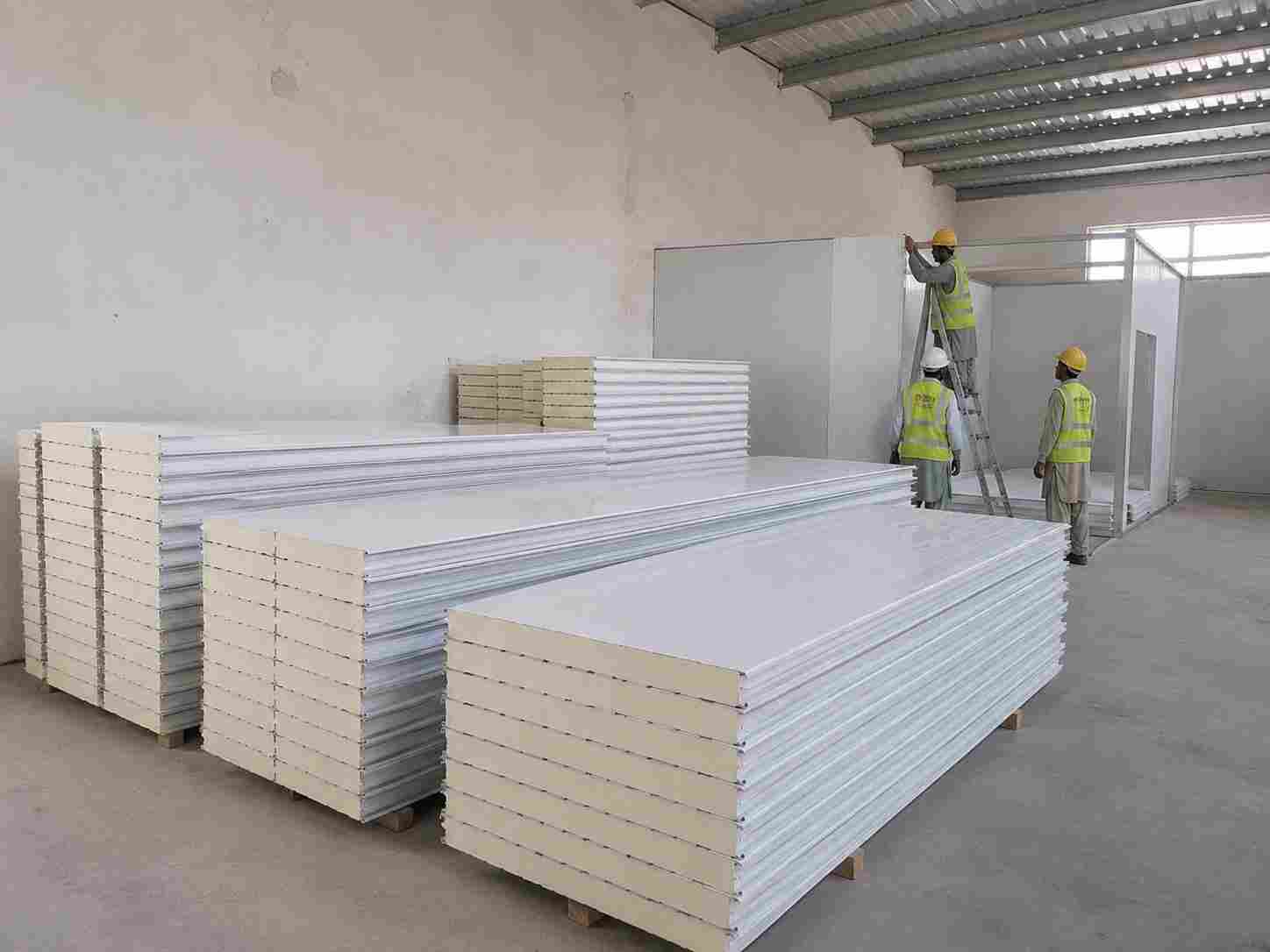

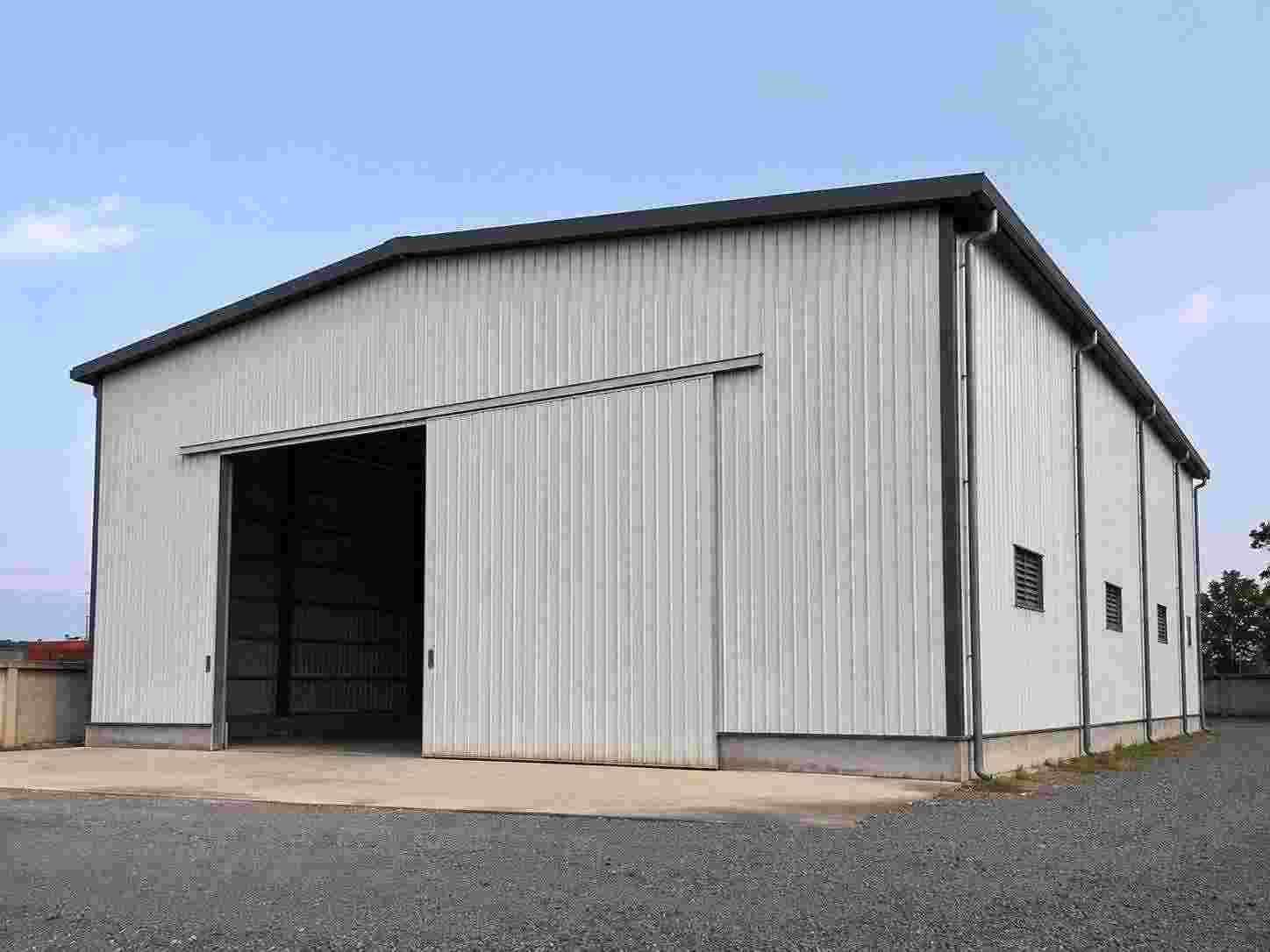

📸 Recent Physical Deployments by ColdMatrix
📱 Discuss Your Industrial Project Locally
Need urgent technical verification, physical material samples delivered to your office, or a verified commercial invoice layout? Skip the automated queue and connect directly with our head engineering office in Karachi.
📚 The Complete Cold Storage Engineering Guide
Cold storage is a critical part of the global food supply chain, pharmaceutical distribution, and industrial processing. Every cold room — whether a small walk-in freezer in a restaurant or a massive warehouse cold storage facility — relies on the same fundamental principles: proper insulation, accurate cooling load calculation, and reliable refrigeration equipment. Getting any one of these wrong means wasted energy, spoiled products, or premature equipment failure.
Understanding Cooling Load Components
Cooling load is the total amount of heat energy your refrigeration system must remove to maintain the desired temperature. It has four main components:
- Transmission Load (Wall Heat Gain): Heat flowing through walls, roof, and floor due to temperature difference between inside and outside. This is the largest load in most cold rooms — typically 60-70% of total load. Better insulation directly reduces this load.
- Product Load: Heat released by products as they cool from entry temperature to storage temperature. For freezers, this includes latent heat of freezing — the energy required to turn water in the product into ice. Product load can be massive when warm products enter a freezer.
- Infiltration Load: Warm outside air entering through door openings and gaps. Every time a door opens, warm moist air rushes in. This is especially significant in high-traffic cold rooms with frequent forklift access.
- Equipment Load: Heat from electric motors, lights, fans, and people working inside. This is typically 10-15% of total load and is often estimated as a percentage.
Panel Selection: PUF vs PIR vs EPS
The insulation core is the heart of your cold room panel. Three materials dominate the market:
- PUF (Polyurethane Foam): The most widely used. Offers excellent thermal performance (λ=0.022), good structural strength, and reasonable cost. Standard density is 40-45 kg/m³. Recommended for most cold room applications from -35°C to +25°C.
- PIR (Polyisocyanurate): An upgraded version of PUF with better fire resistance and slightly better insulation (λ=0.020). Costs 15-20% more but worth it for high-value projects, pharmaceutical storage, or where fire codes are strict.
- EPS (Expanded Polystyrene): Cheapest option but with significantly lower insulation value (λ=0.035). Requires thicker panels to achieve the same insulation as PUF. Only recommended for chilled rooms (above 0°C) where cost is the primary concern.
Pro tip: For freezers below -15°C, always use minimum 125mm PUF/PIR panels. For chillers (0°C to +5°C), 75-100mm is usually sufficient. In extreme climates like the Middle East or South Asia summers, consider one step thicker.
Fire Safety Regional Compliance
Fire safety regulations for insulated panels vary significantly by region. Selecting the correct panel core material is critical for both compliance and insurability:
- Middle East (GCC): Civil Defense approvals in Dubai, Riyadh, and Doha demand FM-Approved PIR panels or Rockwool core panels with a minimum 2-hour fire rating. Standard PU panels are often rejected.
- North America & Europe: Projects must comply with ASTM E84 (USA) or EN 13501-1 (Europe). PIR panels with Class B-s1, d0 fire rating are recommended. Avoid EPS in freezer applications.
- South Asia: Local building codes typically accept PUF panels. However, for high-value pharmaceutical or export-oriented facilities, PIR is recommended for enhanced safety.
- Oceania: AS/NZS standards require PIR or Rockwool for high-hazard installations. Always check local authority requirements.
Our calculator automatically applies these regional rules when you select your country.
Refrigeration System Types
- Monoblock Units: Self-contained units mounted through the wall. Ideal for small cold rooms up to 3 TR. Easy installation, lower cost, but limited capacity.
- Split Systems: Separate condensing unit outside and evaporator inside. For 3-15 TR applications. Most common for commercial cold rooms. Offers better performance and easier maintenance.
- Compressor Racks: Multiple compressors connected together for large facilities above 15 TR. Provides redundancy and staged capacity. Standard for distribution warehouses and processing plants.
- Ammonia (NH3) Systems: For industrial plants above 20 TR. Highest efficiency but requires trained operators and special safety measures.
Energy Efficiency Best Practices
- Right-size the system: Oversized systems cycle on/off frequently, reducing efficiency and increasing wear. Undersized systems run constantly and fail to maintain temperature.
- Invest in insulation: Each additional 25mm of PUF insulation typically reduces energy consumption by 8-12%. The upfront panel cost pays back within 2-3 years of energy savings.
- Use door heaters on freezers: Without door heaters, ice builds up around the door frame, preventing proper sealing and forcing the compressor to work harder.
- Install strip curtains: PVC strip curtains on door openings can reduce infiltration by 60-80% while maintaining access speed.
- Choose modern refrigerants: R448A/R449A provide 10-15% better energy efficiency than legacy R404A while reducing environmental impact.
- Regular maintenance: Dirty condenser coils reduce heat rejection efficiency by 20-30%. Schedule quarterly coil cleaning.
Common Installation Mistakes to Avoid
- Missing vapour barrier: Moisture entering panels destroys insulation over time and causes ice formation inside panels — leading to panel delamination.
- Poor floor insulation: Cold room floors without insulation cause condensation, frost heave, and structural damage. Always use minimum 100mm insulation under freezer floors.
- Improper panel sealing: Gaps between panels create thermal bridges. Use proper cam-lock mechanisms and sealant at all joints.
- Ignoring door traffic: Undersizing the system for actual door usage leads to temperature recovery failures. Always specify door usage correctly.
- No safety margin: New installations age — compressor performance drops 5-10% in first 5 years. Always include a 15-25% safety factor.
Real-World Design Scenarios
Scenario 1 — Restaurant Walk-in Freezer (Pakistan): 10ft × 8ft × 8ft freezer at -18°C in Lahore summer (45°C). Typical load: 2.5-3 TR. Recommended: 100mm PUF panels, R448A split system, 1 door with heater. Approximate cost: Rs. 1.8-2.5 million.
Scenario 2 — Fruit Cold Store (UAE): 40ft × 30ft × 15ft at +2°C in Dubai (48°C). Typical load: 8-10 TR. Recommended: 75mm PIR panels (FM-Approved), R448A split system with dual compressor. Approximate cost: AED 85,000-120,000.
Scenario 3 — Frozen Distribution Warehouse (Saudi Arabia): 100ft × 60ft × 25ft at -25°C in Riyadh (50°C). Typical load: 60-75 TR. Recommended: 150mm PIR panels, ammonia or CO2 rack system. Approximate cost: SAR 1.5-2.5 million.
Extended FAQ
Q: What's the difference between a chiller and a freezer?
A chiller maintains temperatures above 0°C (typically +1°C to +8°C). A freezer maintains below 0°C (typically -15°C to -25°C). Freezers require thicker insulation, door heaters, and floor insulation.
Q: How often should I defrost?
Modern systems have automatic defrost cycles every 6-8 hours. Manual defrosting is only needed on older systems.
Q: What TR means?
TR = Ton of Refrigeration = 12,000 BTU/hr = 3.517 kW. It's the cooling required to freeze 1 ton of water into ice in 24 hours.
Q: Can I add more rooms to an existing system?
No. Each cold room should have its own evaporator and dedicated or shared condensing unit sized correctly for its specific load.
Q: How long do cold room panels last?
With proper installation and maintenance, PUF/PIR panels last 15-25 years. Steel skins may need repainting or replacement after 12-15 years in humid environments.
Q: What's the ideal floor construction for freezers?
From top: reinforced concrete slab → vapour barrier → insulation (100mm XPS or PUF) → structural concrete with heating cables for frost heave prevention.
Q: Why is my electricity bill so high?
Common causes: dirty condensers, worn door gaskets, missing strip curtains, insufficient insulation, oversized system, or high ambient temperatures. Regular maintenance can reduce bills by 15-25%.
Q: Should I use a second compressor for redundancy?
For critical storage (pharma, high-value goods), yes. The cost of spoilage from a failed compressor far exceeds the cost of a standby unit.
Q: How do I choose between wall-mounted and ceiling-mounted evaporators?
Wall-mounted works best for small rooms under 15ft height. Ceiling-mounted provides better air distribution for larger rooms.
Q: What's the typical lead time for a cold room project?
Panel manufacturing: 2-4 weeks. Installation: 1-3 weeks. Refrigeration setup and commissioning: 1-2 weeks. Total: 4-9 weeks depending on size and complexity.
What Is a Cold Storage Room?
A cold storage room is a temperature-controlled space used to preserve perishable goods such as food, pharmaceuticals, and industrial materials. It is built with insulated panels, a cooling system, and a vapour barrier to maintain a stable low temperature and protect products from spoilage.
Cold storage rooms are commonly used in food processing, restaurants, supermarkets, pharmaceutical storage, agricultural cold chains, and industrial test chambers. The performance of a cold room depends on correct insulation, accurate cooling load calculation, and proper installation of panels and doors.
How the Cold Storage Calculator Works
This calculator estimates the cooling load and helps you understand the key parameters for designing a cold room. It considers room dimensions, internal and external temperatures, insulation type and thickness, product type and quantity, door openings, and daily usage. While it gives a reliable estimate, final cooling system selection should always be confirmed by a qualified HVAC or refrigeration engineer.
Key Inputs Explained
- Room dimensions: Determines the total volume and surface area to be cooled.
- External temperature: The hotter the outside air, the higher the cooling load.
- Internal temperature: Depends on product storage requirements (e.g., -18°C for frozen, +2°C for fresh).
- Insulation type: PU/PIR panels provide better thermal resistance than EPS.
- Insulation thickness: Thicker insulation reduces heat gain and energy consumption.
- Product type: Different products release different amounts of heat.
- Daily door openings: Frequent openings increase warm air infiltration.
- Country / Region: Fire safety standards vary; selecting the right region ensures compliance.
Real-World Example
Imagine a cold room with internal dimensions of 6 m × 4 m × 3 m. The outside temperature is 35°C, and the desired internal temperature is -18°C. The room uses 100 mm PU/PIR insulated panels.
- Volume: 6 × 4 × 3 = 72 m³
- Surface area: Approximately 108 m²
- Temperature difference: 35°C - (-18°C) = 53°C
- Estimated cooling load: High, due to large temperature difference and frozen storage
Using the calculator, you can adjust insulation thickness and see how it reduces the estimated load. This helps in selecting the right panels and cooling unit.
Common Mistakes to Avoid
- Underestimating heat infiltration — every door opening brings warm air inside. Always add a safety margin.
- Wrong insulation thickness — saving money on panels leads to high energy bills later.
- Ignoring floor insulation — cold rooms need floor insulation to prevent condensation and structural damage.
- Poor vapour barrier installation — moisture entering the panels reduces insulation performance and causes ice build-up.
- Not considering product load — products entering at higher temperature add extra load that must be removed quickly.
- Ignoring regional fire safety — using non-compliant panels can lead to project rejection or insurance issues.
Frequently Asked Questions (FAQ)
Q: What is the best insulation for a cold storage room?
A: PU (Polyurethane) or PIR (Polyisocyanurate) panels are recommended because they offer the best thermal performance per mm of thickness. EPS panels can be used for less demanding applications.
Q: How thick should my panels be?
A: For frozen storage (-18°C), 100 mm to 150 mm PU/PIR is typical. For fresh products (+2°C), 60 mm to 80 mm is often sufficient, depending on climate.
Q: Can I use this calculator for a freezer room?
A: Yes, simply set the internal temperature to your desired freezer temperature and use appropriate insulation values.
Q: Is this calculator accurate enough for project execution?
A: It gives a reliable estimate for planning and budgeting. For final equipment selection, always consult a licensed HVAC engineer.
❄️ Cold Storage Design & Engineering: The Complete Professional Guide
Cold storage is not just about keeping things cold — it's about precision, efficiency, and long-term reliability. Whether you're building a small walk-in freezer for a restaurant or a massive distribution warehouse for frozen foods, the principles remain the same: accurate thermal load calculation, proper insulation selection, and correct refrigeration system design. This guide will take you through everything you need to know to plan and build a successful cold room.
1. Understanding the Four Types of Cold Rooms
Cold rooms are categorized by their operating temperature and the products they store. Each type requires different insulation thickness, door design, and refrigeration capacity.
- Chillers (0°C to +8°C): For fruits, vegetables, dairy, eggs, and pharmaceuticals. These rooms need moderate insulation (75–100mm PUF/PIR panels) and basic refrigeration systems.
- Freezers (-15°C to -25°C): For frozen meat, seafood, ice cream, and ready-to-cook products. Freezers require thicker insulation (125–150mm panels), door heaters, and floor insulation to prevent frost heave and ice build-up.
- Blast Freezers (-30°C to -40°C): Used for rapid freezing of products, often in food processing plants. These demand very high airflow, heavy-duty evaporators, and special compressor configurations.
- Multipurpose / Multi-Temperature Rooms: Facilities with separate zones at different temperatures, each with independent evaporators and control systems. Ideal for businesses handling mixed product lines.
2. The Importance of Accurate Cooling Load Calculation
Cooling load is the total amount of heat energy your refrigeration system must remove to maintain the desired temperature. It has four main components:
- Transmission Load (60–70%): Heat flowing through walls, roof, and floor due to temperature difference between inside and outside. This is why insulation quality is critical.
- Product Load (10–20%): Heat released by products as they cool from entry temperature to storage temperature. For freezers, this includes latent heat of freezing.
- Infiltration Load (10–15%): Warm air entering through door openings and gaps. Every time a door opens, warm moist air rushes in, increasing load and causing frost.
- Equipment Load (10–15%): Heat from electric motors, lights, fans, and people working inside.
Our calculator uses these principles with a 15% safety factor to recommend the correct refrigeration unit. Always include a safety margin to account for aging equipment and unexpected usage.
3. Choosing the Right Insulation: PUF vs PIR vs EPS
Insulation is the heart of your cold room. Three materials dominate:
- PUF (Polyurethane Foam): Most common. Excellent thermal performance (λ=0.022), good structural strength, reasonable cost. Standard density 40–45 kg/m³.
- PIR (Polyisocyanurate): Better fire resistance and slightly better insulation (λ=0.020). Costs 15–20% more but recommended for high-value projects and strict fire codes.
- EPS (Expanded Polystyrene): Cheapest but lower insulation value (λ=0.035). Only for chilled rooms (above 0°C) where cost is primary.
Pro tip: For freezers below -15°C, always use minimum 125mm PUF/PIR panels. For chillers, 75–100mm is usually sufficient. In extreme climates like the Middle East or South Asian summers, consider one step thicker.
4. Fire Safety & Regional Compliance
Fire safety regulations for insulated panels vary significantly by region. Selecting the correct core material is critical for compliance and insurability:
- Middle East (GCC): Civil Defense demands FM-Approved PIR or Rockwool panels with minimum 2-hour fire rating. Standard PU panels often rejected.
- North America & Europe: ASTM E84 or EN 13501-1. PIR Class B-s1, d0 recommended.
- South Asia: PUF generally accepted, but PIR recommended for export/pharma.
- Oceania: AS/NZS standards require PIR or Rockwool for high-hazard installations.
Our calculator automatically recommends the appropriate core and standard when you select the country.
5. Refrigeration System Selection
- Monoblock Units: Self-contained, for small rooms up to 3 TR.
- Split Systems: Separate condensing unit and evaporator, for 3–15 TR. Most common commercial choice.
- Compressor Racks: Multiple compressors for 15+ TR. Provides redundancy.
- Ammonia (NH3): Industrial plants above 20 TR. Highest efficiency but needs trained operators.
Choose modern refrigerants like R448A/R449A for new installations — better efficiency, lower GWP.
6. Real-World Example: 40×20×15 ft Freezer in Lahore
Let's design a frozen meat storage room in Lahore, where summer ambient reaches 45°C. Room temperature: -20°C. Using our calculator:
- Thermal envelope area: approximately 2,400 ft²
- Volume: 12,000 ft³
- Recommended panel thickness: 125mm PUF/PIR
- Estimated cooling load: 12–15 TR
- Recommended refrigeration: Dual compressor split system with R448A
This setup ensures product integrity even during extreme summer peaks.
7. Common Mistakes & How to Avoid Them
- Underestimating infiltration: Always add door heaters and strip curtains.
- Ignoring floor insulation: Cold room floors need minimum 100mm insulation.
- Using non-compliant panels: Check local fire codes before ordering.
- Oversizing or undersizing refrigeration: Use proper load calculation, not guesswork.
- Poor vapour barrier: Moisture ingress destroys panels over time.
8. Extended FAQ – Cold Storage Deep Dive
Q: What's the ideal floor construction for a freezer?
A: Reinforced concrete slab → vapour barrier → 100mm XPS/PUF insulation → structural concrete with heating cables for frost heave prevention.
Q: How often should I defrost?
A: Modern systems auto-defrost every 6–8 hours. Manual only on older systems.
Q: What's the typical lifespan of a cold room?
A: 15–25 years with proper maintenance. Steel skins may need repainting after 12–15 years in humid climates.
Q: Should I use a second compressor for redundancy?
A: Yes for critical storage (pharma, high-value). Cost of spoilage far exceeds standby unit cost.
Q: Can I add more rooms to an existing system?
A: No. Each room should have its own evaporator and dedicated capacity.
Q: Why is my electricity bill so high?
A: Dirty condensers, worn gaskets, missing strip curtains, insufficient insulation, or oversized system. Regular maintenance reduces bills by 15–25%.
✅ This guide, combined with our free calculator, gives you everything needed to plan a professional cold storage project.
